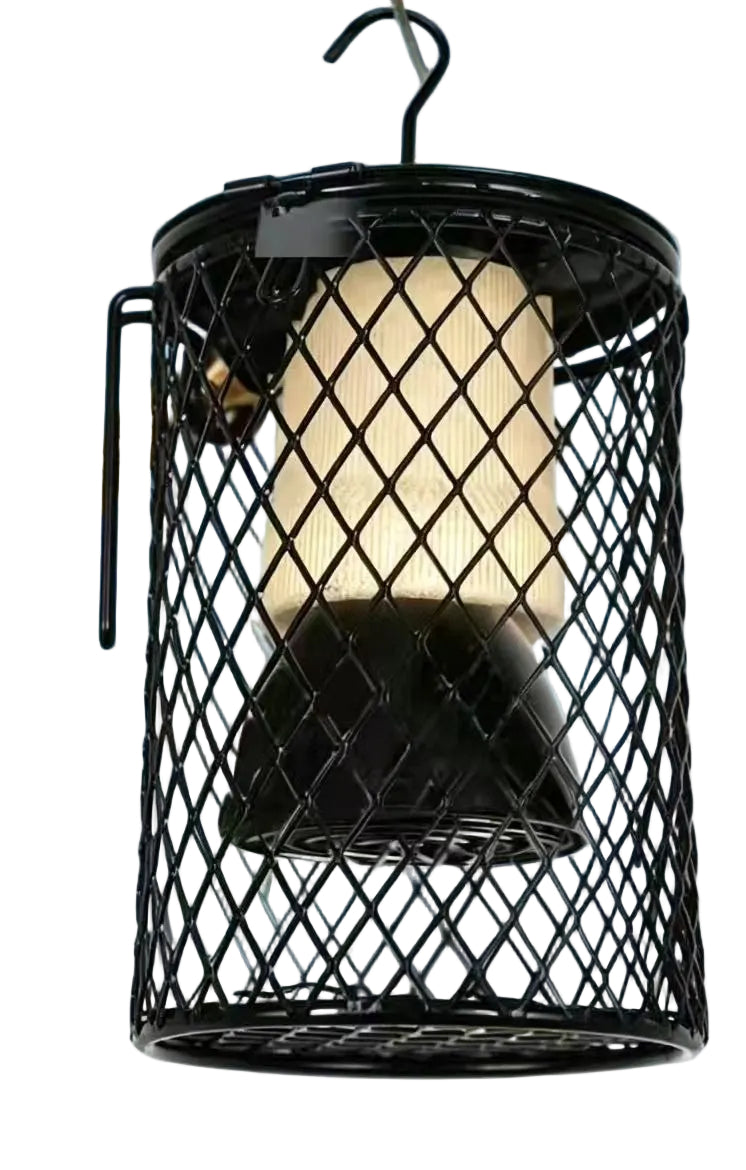

Anti-Scald Hanging Mesh Heater Guard & Ceramic Fixture

Equipped with a heat-resistant ceramic screw socket, this fixture is designed for mini heat emitters and compact basking bulbs up to 100W. The power cable features a heavy-duty, bite-proof metal spring sheath to protect against chewing and clawing, along with an integrated inline power switch. Flexible installation options—including a 40 mm top suspension hook and sturdy side mounting brackets—make it simple to install inside wooden vivariums, wire bird cages, or acrylic habitats.

Product Details:

• Safety Cage: Heavy-duty anti-scald wire mesh designed to prevent direct contact with hot heating elements
• Socket Type: Heat-tolerant ceramic screw socket (standard screw base)
• Chew-Proof Protection: Power cord is wrapped in an anti-bite metal spring conduit to safeguard against chewing and claw damage
• Dual Mounting Options: Includes a 40 mm (1.6") top hook for overhead hanging and side bracket clips for mounting directly to cage bars, mesh screens, or enclosure walls

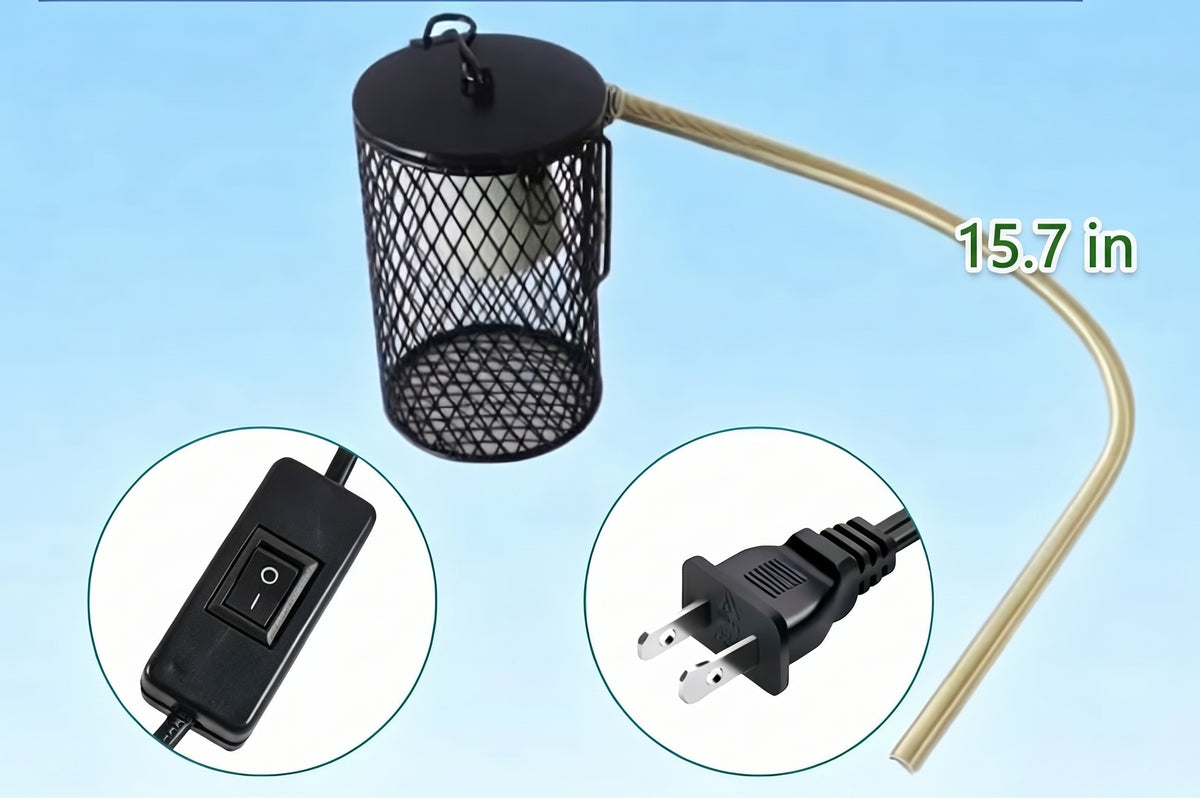

• Inline Controls: Integrated on/off rocker switch for easy manual operation
• Bulb Compatibility: Designed for heating bulbs and ceramic heat emitters measuring 2.55" (65 mm) or less in diameter and 3.15" (80 mm) or less in height

Dimensions:

• Guard Diameter: 2.75" (70 mm)
• Guard Height: 4.13" (105 mm)
• Top Hook Height: 1.57" (40 mm)
• Total Hanging Height: ~5.7" (145 mm)

Wattage & Temperature Output

The chart below shows the approximate ambient temperature increase achievable depending on heater wattage (tested from a 0°C / 32°F baseline):

(Actual thermal performance will vary depending on room temperature stability, enclosure size, ventilation, and insulation level. For animal safety, always regulate heat sources with a reliable thermostat.)

Safety & Installation Guidelines:

• Clearance: When suspended, ensure the bottom of the guard maintains a clearance of at least 2 inches (5 cm) away from the substrate, flooring, perches, or surrounding enclosure furnishings.
• Burn-In Period: Initial heating of new ceramic elements may produce a temporary odor as factory protective coatings evaporate. Run the heater in a well-ventilated room or outside the pet enclosure for 1 to 2 hours prior to final setup.
• Operating Position: Never rest the unit directly flat on the ground while connected to power; ensure it is properly hung or bracket-mounted prior to turning on.
